Wall chargers
Charging stations

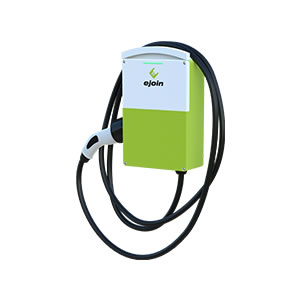

Ejoin charging station Homebox AC
Array
890,00 €
Delivery time up to 4 weeks
A simple solution for charging your electric vehicle. The basic charging station is equipped with a connector or socket, which is standard for all available electric vehicles.
Only an electric car that accepts a power of 22 kW can be charged.
| Charging station model: |
Homebox AC |
| Maximum power (kW): |
22 |
|
Number of phases: |
3 |
|
Power type: |
AC |
|
Maximum current (A): |
32 |
|
Output frequency (Hz): |
50 |
|
Input / output voltage (V): |
400 |
|
Protection class: |
IP54 |
|
Humidity level (%): |
95, no condensation |
|
Operating temperature range (°C): |
from -25 to +50 |
|
Dimensions (mm): |
235 x 345 x 1250 |
|

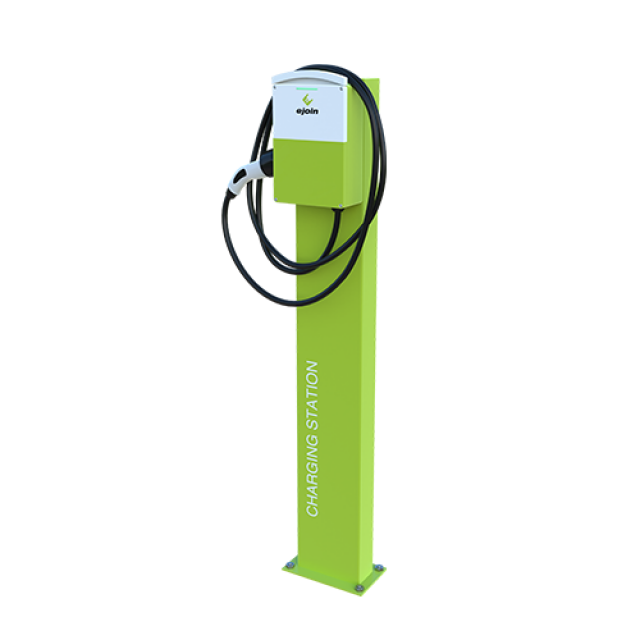

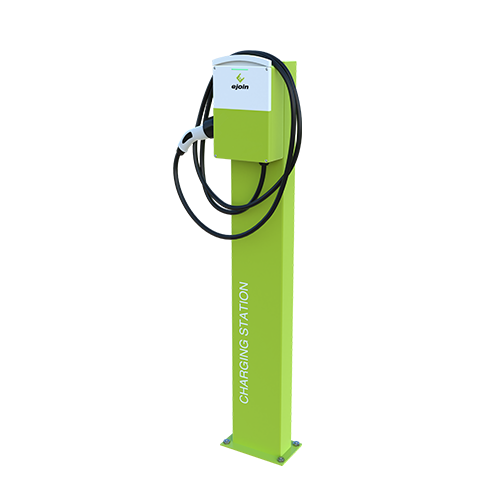

Stand length (mm) and weight |
1600 x 230 x 100; 24.3 (kg) |
|
Weight (kg): |
5.2 |
|
Environment: |
outdoor / indoor |
|

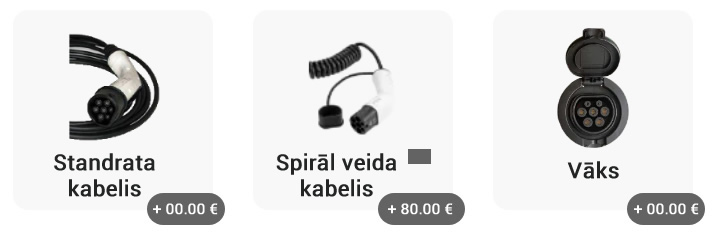

Cable Type/Output: |
Type 2 |
|
Cable length (m): |
5 |
|
Length of spiral cable (m): |
4 |
|
Stations additionally have: |
CE certification, built-in WiFi (in the application you can see the charging history and set the time control of the station) |
(power max 22 kW)
